MTM Scientific, Inc... FREE YAGI Antenna Plans for Television and Radio Astronomy

Build a UHF Antenna for Television, Radio Astronomy, Amateur Radio...

YAGI using a PVC Pipe for mast Antenna build exactly to the plans

Our free YAGI UHF TV ANTENNA PLANS describe how to build a simple high gain YAGI antenna for reception of a single broadcast television channel ranging between 14 and 70 (470 - 812 MHz).  This antenna project provides good performance because you build it exactly for the single TV channel or frequency you want to receive. The antenna plans call for using a ruled wooden mast, brass and aluminum antenna elements and a coaxial cable. As you can imagine, assembly of this antenna project requires measuring, drilling, wire cutting and wire bending. Note that PVC pipe can be substituted for the wooden mast (As shown in the photo above) to build an outdoor version. The most popular use of this antenna is for radio astronomy projects by building it for channel 37, as described on our Radio Telescope PageThis set of scientific product plans is ONLY available directly from MTM Scientific, Inc!

Specifications: YAGI Antenna, Frequency Range 470-812 MHz, 11+ Db Gain, 75 Ohm Impedance

ANTENNA PLANS: Free Download



Purchase the Brass and Aluminum Rods to Build the YAGI Antenna Project


Brass and Aluminum Rods

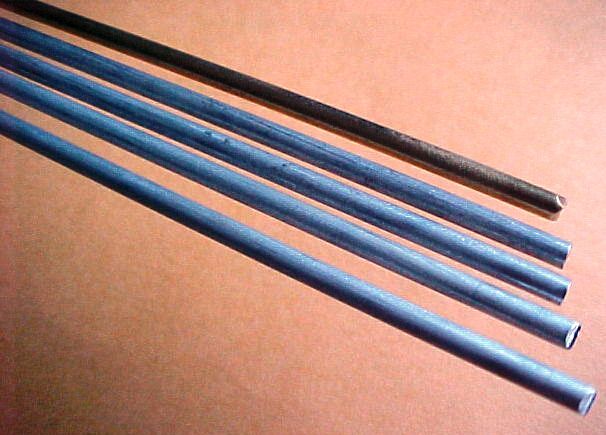

BRASS & ALUMINUM RODS (CAT# RODS): The only difficult item to find for building the YAGI Antenna according to the plans are the brass and aluminum antenna elements. Customers have inquired where they can purchase the 1/8 inch diameter brass and aluminum material. Therefore we have put together this kit consisting of 1 brass and 4 aluminum rods, each 24 inches long.  The brass element is used for the folded dipole portion of the antenna, as it allows soldering of the coaxial cable leads for a good connection.  The aluminum is used for the reflector and director elements. This offer contains enough material to allow for contruction of an antenna at any frequency of interest, according to the plans. Note that you will still need to acquire the other items described in the plans for building an antenna. We are offering this kit of 5 pieces shipped anywhere in the world by Postal Mail for $23.50 Please use the Paypal link below to order.

BRASS & ALUMINUM RODS (Catalog #RODS)...$23.50, Worldwide shipping included!

BY PAYPAL: click the "PAYPAL, Buy Now" button.  Mail Orders: see details below.





ORDERING INFORMATION


We keep ordering simple!  Prompt, courteous 30 day refund policy.

BY MAIL....please send a Check or Money Order for $23.50 to:

MTM Scientific, Inc.  P.O. Box 522, Clinton, Michigan 49236 USA

No shipping delays for Personal Checks.  We ship promptly by First Class Mail and Airmail.

BY PAYPAL... Click the "Buy Now" button above, or send $23.50 directly to: mtm@mtmscientific.com

(Paypal is a great way to send money using email and a credit card... check it out!)
